Part E: Generating Medical Reports - Visitor Pattern

Document: Part E Analysis

Pattern: Visitor Pattern

Module: Medical Reports Generation System

Author: Ishara Lakshitha

1. Overview & Problem Statement

Healthcare Domain Problems Addressed

Problem 1: Diverse Reporting Requirements

Healthcare systems need multiple types of reports for different stakeholders
Financial reports for billing departments and insurance companies
Clinical reports for medical staff and patient care coordination
Administrative reports for management and regulatory compliance
Patient-specific reports for individualized care planning

Problem 2: Complex Data Aggregation

Reports must combine data from multiple domain objects (Patients, Appointments, Bills)
Different report types require different data processing algorithms
Need to maintain data consistency across different report formats
Complex calculations involving financial, clinical, and operational metrics

Problem 3: Extensible Report Framework

New report types frequently required for changing business needs
Regulatory requirements often demand new reporting formats
Must support custom report generation without modifying existing domain objects
Need to separate report generation logic from core business objects

Solution Approach

The Visitor Pattern provides a flexible reporting framework where:

Domain Objects (PatientRecord, Appointment, MedicalBill) implement Visitable interface
Report Visitors encapsulate specific report generation algorithms
Data Processing is separated from domain object structure
Extensibility allows adding new report types without modifying existing code

2. Visitor Pattern Implementation

2.1 Pattern Participants

Visitor Interface

/**
 * The Visitor interface. It declares a set of visiting methods for each
 * concrete Visitable element.
 */
public interface ReportVisitor {
    void visit(PatientRecord patient);
    void visit(Appointment appointment);
    void visit(MedicalBill bill);

    // Method to retrieve the final generated report
    String getReport();
}

Element Interface

/**
 * Defines the accept method that allows a visitor to perform an operation on an object.
 * This is the "Element" interface in the Visitor pattern.
 */
public interface Visitable {
    void accept(ReportVisitor visitor);
}

Concrete Elements

PatientRecord Implementation

public class PatientRecord implements Visitable {
    private String patientId;
    private String name;
    private String medicalHistory;
    private String treatmentPlans;
    private InsurancePlan insurancePlan;

    @Override
    public void accept(ReportVisitor visitor) {
        visitor.visit(this);
    }

    // Getters and other methods...
}

Appointment Implementation

public class Appointment implements Visitable {
    private int appointmentId;
    private String patientId;
    private String doctorId;
    private LocalDateTime appointmentDateTime;
    private String reason;
    private String status;
    private String doctorNotes;

    @Override
    public void accept(ReportVisitor visitor) {
        visitor.visit(this);
    }

    // Business methods and validation...
}

MedicalBill Implementation

public class MedicalBill implements Visitable {
    private int billId;
    private String patientId;
    private String serviceDescription;
    private double amount;
    private double amountPaid;
    private double insurancePaidAmount;
    private String status;

    @Override
    public void accept(ReportVisitor visitor) {
        visitor.visit(this);
    }

    // Financial calculation methods...
}

2.2 Concrete Visitor Implementations

Patient Summary Report Visitor

/**
 * Patient Summary Report Visitor - Fixed to match actual database schema
 * Provides comprehensive overview of patient's healthcare and financial information
 */
public class PatientSummaryReportVisitor implements ReportVisitor {
    private final StringBuilder reportContent = new StringBuilder();
    private final List<Appointment> appointments = new ArrayList<>();
    private final List<MedicalBill> bills = new ArrayList<>();
    private final Map<String, Integer> serviceCount = new HashMap<>();
    private final Map<String, Integer> doctorVisits = new HashMap<>();
    private final DateTimeFormatter dateFormatter = DateTimeFormatter.ofPattern("yyyy-MM-dd");

    private PatientRecord currentPatient;
    private double totalBilled = 0;
    private double totalCollected = 0;
    private double totalOutstanding = 0;

    @Override
    public void visit(PatientRecord patient) {
        this.currentPatient = patient;

        reportContent.append(repeatString("=", 90)).append("\\n");
        reportContent.append("    COMPREHENSIVE PATIENT SUMMARY REPORT\\n");
        reportContent.append(repeatString("=", 90)).append("\\n");
        reportContent.append("Patient: ").append(patient.getName())
                .append(" (ID: ").append(patient.getPatientId()).append(")\\n");
        reportContent.append(repeatString("=", 90)).append("\\n\\n");
    }

    @Override
    public void visit(Appointment appointment) {
        appointments.add(appointment);

        // Track doctor visits
        String doctorId = appointment.getDoctorId();
        doctorVisits.put(doctorId, doctorVisits.getOrDefault(doctorId, 0) + 1);
    }

    @Override
    public void visit(MedicalBill bill) {
        bills.add(bill);
        totalBilled += bill.getAmount();
        totalCollected += bill.getTotalCollected();
        totalOutstanding += bill.getRemainingBalance();

        // Track service usage
        String service = bill.getServiceDescription();
        serviceCount.put(service, serviceCount.getOrDefault(service, 0) + 1);
    }

    @Override
    public String getReport() {
        generatePatientInformation();
        generateHealthcareSummary();
        generateFinancialSummary();
        generateRecentActivity();
        generateServiceUtilization();
        generateDoctorRelationships();
        generateHealthIndicators();
        generateActionItems();
        return reportContent.toString();
    }

    private void generatePatientInformation() {
        reportContent.append("PATIENT INFORMATION\\n");
        reportContent.append(repeatString("-", 50)).append("\\n");
        reportContent.append("Name: ").append(currentPatient.getName()).append("\\n");
        reportContent.append("Patient ID: ").append(currentPatient.getPatientId()).append("\\n");
        reportContent.append("Medical History: ").append(currentPatient.getMedicalHistory()).append("\\n");
        reportContent.append("Treatment Plans: ").append(currentPatient.getTreatmentPlans()).append("\\n");

        if (currentPatient.getInsurancePlan() != null) {
            reportContent.append("Insurance: ").append(currentPatient.getInsurancePlan().getPlanName())
                    .append(" (").append(currentPatient.getInsurancePlan().getCoveragePercent()).append("% coverage)\\n");
        }
        reportContent.append("\\n");
    }

    private void generateHealthcareSummary() {
        reportContent.append("HEALTHCARE SUMMARY\\n");
        reportContent.append(repeatString("-", 50)).append("\\n");
        reportContent.append("Total Appointments: ").append(appointments.size()).append("\\n");
        reportContent.append("Total Services: ").append(bills.size()).append("\\n");
        reportContent.append("Unique Doctors Seen: ").append(doctorVisits.size()).append("\\n");

        // Healthcare engagement indicator
        if (appointments.size() > 20) {
            reportContent.append("Healthcare Engagement: 🔴 High utilization\\n");
        } else if (appointments.size() > 10) {
            reportContent.append("Healthcare Engagement: 🟡 Regular patient\\n");
        } else if (appointments.size() > 3) {
            reportContent.append("Healthcare Engagement: 🟢 Moderate usage\\n");
        } else {
            reportContent.append("Healthcare Engagement: ⚪ Limited interaction\\n");
        }
        reportContent.append("\\n");
    }

    private void generateFinancialSummary() {
        reportContent.append("FINANCIAL SUMMARY\\n");
        reportContent.append(repeatString("-", 50)).append("\\n");
        reportContent.append(String.format("Total Billed: $%.2f\\n", totalBilled));
        reportContent.append(String.format("Total Collected: $%.2f\\n", totalCollected));
        reportContent.append(String.format("Outstanding Balance: $%.2f\\n", totalOutstanding));

        if (totalBilled > 0) {
            double collectionRate = (totalCollected / totalBilled) * 100;
            reportContent.append(String.format("Collection Rate: %.1f%%\\n", collectionRate));
        }
        reportContent.append("\\n");
    }

    // Additional helper methods for report generation...
    private String repeatString(String str, int count) {
        return str.repeat(Math.max(0, count));
    }
}

Financial Report Visitor

/**
 * Enhanced Financial Report Visitor - Fixed to match actual DB schema and MedicalBill class
 */
public class FinancialReportVisitor implements ReportVisitor {
    private final StringBuilder reportContent = new StringBuilder();
    private final List<MedicalBill> bills = new ArrayList<>();
    private final Map<String, Double> serviceRevenue = new HashMap<>();
    private final DateTimeFormatter dateFormatter = DateTimeFormatter.ofPattern("yyyy-MM-dd");

    private String patientName = "";
    private String patientId = "";
    private double totalBilled = 0;
    private double totalPatientPaid = 0;
    private double totalInsurancePaid = 0;
    private double totalOutstanding = 0;

    @Override
    public void visit(PatientRecord patient) {
        this.patientName = patient.getName();
        this.patientId = patient.getPatientId();

        reportContent.append(repeatString("=", 80)).append("\\n");
        reportContent.append("    INDIVIDUAL PATIENT FINANCIAL SUMMARY\\n");
        reportContent.append(repeatString("=", 80)).append("\\n");
        reportContent.append("Patient: ").append(patient.getName())
                .append(" (ID: ").append(patient.getPatientId()).append(")\\n");
        reportContent.append("Generated: ").append(LocalDate.now().format(dateFormatter)).append("\\n");
        reportContent.append(repeatString("=", 80)).append("\\n\\n");
    }

    @Override
    public void visit(Appointment appointment) {
        // Could track appointment revenue correlation if needed
    }

    @Override
    public void visit(MedicalBill bill) {
        bills.add(bill);
        totalBilled += bill.getAmount();
        totalPatientPaid += bill.getAmountPaid();
        totalInsurancePaid += bill.getInsurancePaidAmount();
        totalOutstanding += bill.getRemainingBalance();

        // Track revenue by service type
        String service = bill.getServiceDescription();
        serviceRevenue.put(service, serviceRevenue.getOrDefault(service, 0.0) + bill.getAmount());
    }

    @Override
    public String getReport() {
        generateFinancialOverview();
        generatePaymentBreakdown();
        generateServiceRevenue();
        generatePaymentStatus();
        generateRecommendations();
        return reportContent.toString();
    }

    private void generateFinancialOverview() {
        reportContent.append("FINANCIAL OVERVIEW\\n");
        reportContent.append(repeatString("-", 50)).append("\\n");
        reportContent.append(String.format("Total Amount Billed: $%,.2f\\n", totalBilled));
        reportContent.append(String.format("Patient Payments: $%,.2f\\n", totalPatientPaid));
        reportContent.append(String.format("Insurance Payments: $%,.2f\\n", totalInsurancePaid));
        reportContent.append(String.format("Total Collected: $%,.2f\\n", totalPatientPaid + totalInsurancePaid));
        reportContent.append(String.format("Outstanding Balance: $%,.2f\\n", totalOutstanding));
        reportContent.append("\\n");
    }

    // Additional financial analysis methods...
}

Service Utilization Report Visitor

/**
 * Patient Service Utilization Visitor - Fixed to match actual database schema
 * Analyzes patient's service usage patterns, appointments, and healthcare utilization
 */
public class PatientServiceUtilizationVisitor implements ReportVisitor {
    private final StringBuilder reportContent = new StringBuilder();
    private final Map<String, ServiceUtilization> serviceUsage = new HashMap<>();
    private final Map<String, DoctorUtilization> doctorVisits = new HashMap<>();
    private final List<Appointment> appointments = new ArrayList<>();
    private final List<MedicalBill> bills = new ArrayList<>();

    private String patientName = "";
    private String patientId = "";
    private double totalSpent = 0;
    private double totalBilled = 0;
    private int totalServices = 0;

    @Override
    public void visit(PatientRecord patient) {
        this.patientName = patient.getName();
        this.patientId = patient.getPatientId();

        reportContent.append(repeatString("=", 90)).append("\\n");
        reportContent.append("    PATIENT SERVICE UTILIZATION REPORT\\n");
        reportContent.append(repeatString("=", 90)).append("\\n\\n");
    }

    @Override
    public void visit(Appointment appointment) {
        // Only process appointments for the current patient
        if (appointment.getPatientId().equals(this.patientId)) {
            appointments.add(appointment);

            // Track doctor utilization
            String doctorId = appointment.getDoctorId();
            DoctorUtilization doctorUtil = doctorVisits.getOrDefault(doctorId,
                    new DoctorUtilization(doctorId));
            doctorUtil.addAppointment(appointment);
            doctorVisits.put(doctorId, doctorUtil);
        }
    }

    @Override
    public void visit(MedicalBill bill) {
        // Only process bills for the current patient
        if (bill.getPatientId().equals(this.patientId)) {
            bills.add(bill);
            totalServices++;
            totalBilled += bill.getAmount();
            totalSpent += bill.getTotalCollected();

            String serviceName = bill.getServiceDescription();
            ServiceUtilization utilization = serviceUsage.getOrDefault(serviceName,
                    new ServiceUtilization(serviceName));
            utilization.addService(bill);
            serviceUsage.put(serviceName, utilization);
        }
    }

    @Override
    public String getReport() {
        generateUtilizationSummary();
        generateAppointmentAnalysis();
        generateServiceBreakdown();
        generateDoctorUtilization();
        generateUtilizationPatterns();
        generateHealthcareValue();
        generateRecommendations();
        return reportContent.toString();
    }

    // Inner classes for data aggregation
    private static class ServiceUtilization {
        private final String serviceName;
        private int usageCount = 0;
        private double totalBilled = 0;
        private double totalPaid = 0;
        private double totalOutstanding = 0;

        public ServiceUtilization(String serviceName) {
            this.serviceName = serviceName;
        }

        public void addService(MedicalBill bill) {
            usageCount++;
            totalBilled += bill.getAmount();
            totalPaid += bill.getTotalCollected();
            totalOutstanding += bill.getRemainingBalance();
        }

        // Getters...
    }

    private static class DoctorUtilization {
        private final String doctorId;
        private final List<Appointment> appointments = new ArrayList<>();
        private final Map<String, Integer> reasonCount = new HashMap<>();
        private final Map<String, Integer> statusCount = new HashMap<>();

        public DoctorUtilization(String doctorId) {
            this.doctorId = doctorId;
        }

        public void addAppointment(Appointment appointment) {
            appointments.add(appointment);

            String reason = appointment.getReason();
            if (reason != null && !reason.trim().isEmpty()) {
                reasonCount.put(reason, reasonCount.getOrDefault(reason, 0) + 1);
            }

            String status = appointment.getStatus();
            statusCount.put(status, statusCount.getOrDefault(status, 0) + 1);
        }

        // Getters and analysis methods...
    }
}

3. UML Class Diagrams

3.0 Comprehensive Diagram

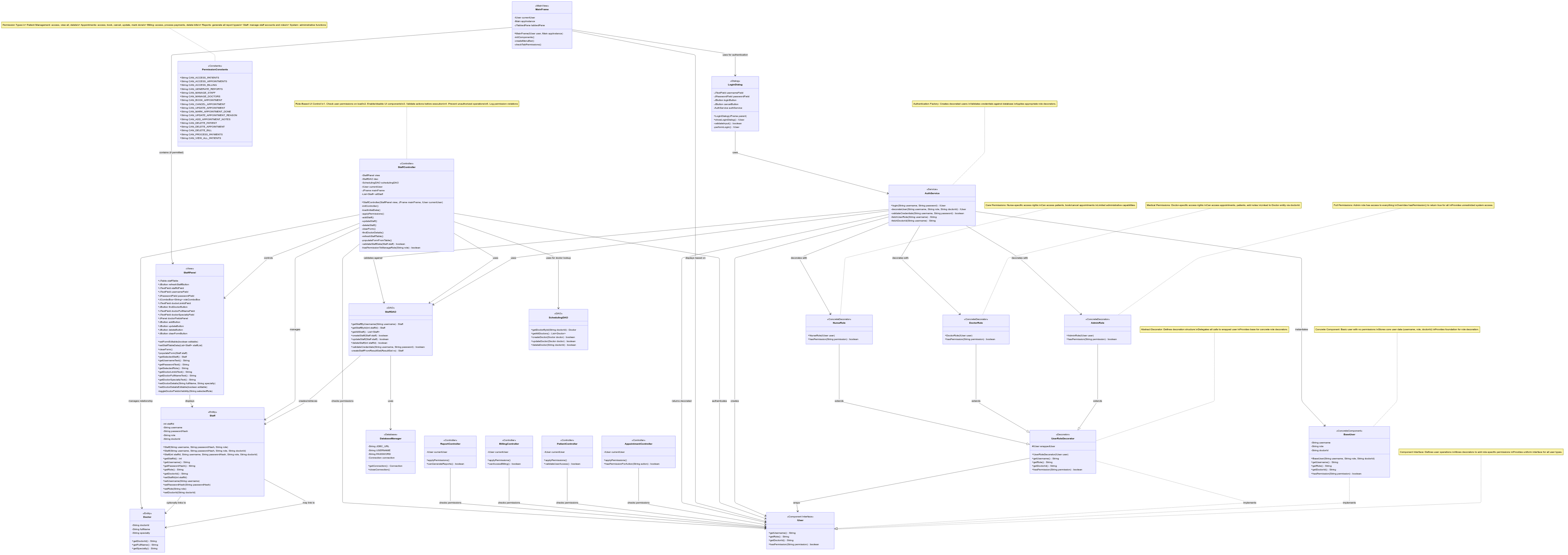

Part E - Generating Medical Reports - Visitor.png

(You can find the High Res images in the Github Project Repo)

3.1 Visitor Pattern Structure

┌─────────────────────────────────────┐
│          <<interface>>              │
│        ReportVisitor                │
├─────────────────────────────────────┤
│ + visit(patient: PatientRecord)     │
│ + visit(appointment: Appointment)   │
│ + visit(bill: MedicalBill)          │
│ + getReport(): String               │
└─────────────────────────────────────┘
                    ▲
        ┌───────────┼───────────┐
        │           │           │
┌───────────────┐ ┌─────────────┐ ┌──────────────────┐
│PatientSummary │ │Financial    │ │ServiceUtilization│
│ReportVisitor  │ │ReportVisitor│ │Visitor           │
├───────────────┤ ├─────────────┤ ├──────────────────┤
│- reportContent│ │- bills: List│ │- serviceUsage    │
│- appointments │ │- totalBilled│ │- doctorVisits    │
│- bills: List  │ │- totalPaid  │ │- appointments    │
│- serviceCount │ └─────────────┘ └──────────────────┘
│- doctorVisits │
└───────────────┘

┌─────────────────────────────────────┐
│          <<interface>>              │
│           Visitable                 │
├─────────────────────────────────────┤
│ + accept(visitor: ReportVisitor)    │
└─────────────────────────────────────┘
                    ▲
        ┌───────────┼───────────┐
        │           │           │
┌───────────────┐ ┌─────────────┐ ┌──────────────┐
│PatientRecord  │ │Appointment  │ │MedicalBill   │
├───────────────┤ ├─────────────┤ ├──────────────┤
│- patientId    │ │- appointmentId│ │- billId      │
│- name         │ │- patientId  │ │- patientId   │
│- medicalHist. │ │- doctorId   │ │- amount      │
│- insurance    │ │- dateTime   │ │- amountPaid  │
├───────────────┤ │- reason     │ │- status      │
│+ accept()     │ │- status     │ ├──────────────┤
└───────────────┘ ├─────────────┤ │+ accept()    │
                  │+ accept()   │ │+ getTotalColl│
                  └─────────────┘ │  ected()     │
                                  └──────────────┘

3.2 Report Generation Flow

ReportController
        │
        ▼
    generateReport(visitor)
        │
        ├─→ patient.accept(visitor) ─→ visitor.visit(patient)
        │                                      │
        ├─→ appointments.forEach(apt →         │
        │     apt.accept(visitor)) ─→ visitor.visit(appointment)
        │                                      │
        └─→ bills.forEach(bill →               │
              bill.accept(visitor)) ─→ visitor.visit(bill)
                                               │
                                               ▼
                                     visitor.getReport()
                                               │
                                               ▼
                                        Generated Report

4. Detailed Code Analysis

4.1 Report Controller Integration

/**
 * ReportController manages report generation workflow
 * Demonstrates how the Visitor pattern integrates with the controller layer
 */
public class ReportController {
    private final ReportPanel view;
    private final BillingDAO billingDAO;
    private final SchedulingDAO schedulingDAO;
    private final PatientDAO patientDAO;
    private final IUser currentUser;

    private PatientRecord currentPatient;

    private void generatePatientSpecificReport(ReportVisitor visitor) {
        processPatientData(visitor);
        processPatientAppointments(visitor);
        processPatientBills(visitor);
    }

    private void processPatientData(ReportVisitor visitor) {
        // Process patient data
        currentPatient.accept(visitor);
    }

    private void processPatientAppointments(ReportVisitor visitor) {
        // Get appointments for the patient
        List<Appointment> appointments = schedulingDAO.getAppointmentsByPatientId(
                currentPatient.getPatientId());
        for (Appointment appointment : appointments) {
            appointment.accept(visitor);
        }
    }

    private void processPatientBills(ReportVisitor visitor) {
        // Get bills for the patient within date range
        List<MedicalBill> bills = getBillsForPatientWithFilters(currentPatient.getPatientId());
        for (MedicalBill bill : bills) {
            bill.accept(visitor);
        }
    }

    private void generatePatientSummaryReport() {
        if (currentPatient == null) {
            showError("Please select a patient first.");
            return;
        }

        PatientSummaryReportVisitor visitor = new PatientSummaryReportVisitor();
        generatePatientSpecificReport(visitor);

        String report = visitor.getReport();
        view.displayReport(report);

        JOptionPane.showMessageDialog(view,
            "Patient Summary Report generated successfully!",
            "Report Generated", JOptionPane.INFORMATION_MESSAGE);
    }

    private void generateFinancialReport() {
        if (currentPatient == null) {
            showError("Please select a patient first.");
            return;
        }

        FinancialReportVisitor visitor = new FinancialReportVisitor();
        generatePatientSpecificReport(visitor);

        String report = visitor.getReport();
        view.displayReport(report);

        JOptionPane.showMessageDialog(view,
            "Financial Report generated successfully!",
            "Report Generated", JOptionPane.INFORMATION_MESSAGE);
    }
}

4.2 Complex Data Aggregation Examples

Patient Summary Report Data Processing

public class PatientSummaryReportVisitor implements ReportVisitor {
    @Override
    public void visit(PatientRecord patient) {
        this.currentPatient = patient;
        // Initialize report header with patient information
        generateReportHeader(patient);
    }

    @Override
    public void visit(Appointment appointment) {
        appointments.add(appointment);

        // Track doctor-patient relationships
        String doctorId = appointment.getDoctorId();
        doctorVisits.put(doctorId, doctorVisits.getOrDefault(doctorId, 0) + 1);

        // Analyze appointment patterns
        analyzeAppointmentPatterns(appointment);
    }

    @Override
    public void visit(MedicalBill bill) {
        bills.add(bill);

        // Financial aggregation
        totalBilled += bill.getAmount();
        totalCollected += bill.getTotalCollected();
        totalOutstanding += bill.getRemainingBalance();

        // Service utilization tracking
        String service = bill.getServiceDescription();
        serviceCount.put(service, serviceCount.getOrDefault(service, 0) + 1);

        // Payment analysis
        analyzePaymentPatterns(bill);
    }

    private void generateHealthIndicators() {
        reportContent.append("HEALTH INDICATORS\\n");
        reportContent.append(repeatString("-", 50)).append("\\n");

        // Service diversity analysis
        if (serviceCount.size() > 10) {
            reportContent.append("Service Diversity: 🔴 High - complex healthcare needs\\n");
        } else if (serviceCount.size() > 5) {
            reportContent.append("Service Diversity: 🟡 Moderate - varied healthcare needs\\n");
        } else {
            reportContent.append("Service Diversity: 🟢 Focused - specific healthcare needs\\n");
        }

        // Appointment compliance calculation
        long completedAppointments = appointments.stream()
                .filter(apt -> "Completed".equalsIgnoreCase(apt.getStatus()) ||
                              "Scheduled".equalsIgnoreCase(apt.getStatus()))
                .count();

        if (appointments.size() > 0) {
            double complianceRate = (double) completedAppointments / appointments.size() * 100;
            reportContent.append(String.format("Appointment Compliance: %.1f%%", complianceRate));

            if (complianceRate >= 90) {
                reportContent.append(" 🟢 Excellent\\n");
            } else if (complianceRate >= 75) {
                reportContent.append(" 🟡 Good\\n");
            } else {
                reportContent.append(" 🔴 Needs Improvement\\n");
            }
        }
    }
}

Service Utilization Analysis

public class PatientServiceUtilizationVisitor implements ReportVisitor {
    @Override
    public void visit(MedicalBill bill) {
        if (bill.getPatientId().equals(this.patientId)) {
            bills.add(bill);
            totalServices++;
            totalBilled += bill.getAmount();
            totalSpent += bill.getTotalCollected();

            // Track service utilization patterns
            String serviceName = bill.getServiceDescription();
            ServiceUtilization utilization = serviceUsage.getOrDefault(serviceName,
                    new ServiceUtilization(serviceName));
            utilization.addService(bill);
            serviceUsage.put(serviceName, utilization);
        }
    }

    private void generateServiceBreakdown() {
        reportContent.append("SERVICE UTILIZATION BREAKDOWN\\n");
        reportContent.append(repeatString("-", 60)).append("\\n");
        reportContent.append(String.format("%-25s %8s %10s %10s %12s\\n",
                "Service", "Count", "Billed", "Paid", "Outstanding"));
        reportContent.append(repeatString("-", 60)).append("\\n");

        serviceUsage.values().stream()
                .sorted((a, b) -> Double.compare(b.getTotalBilled(), a.getTotalBilled()))
                .forEach(service -> {
                    reportContent.append(String.format("%-25s %8d $%9.2f $%9.2f $%11.2f\\n",
                            truncateString(service.getServiceName(), 25),
                            service.getUsageCount(),
                            service.getTotalBilled(),
                            service.getTotalPaid(),
                            service.getTotalOutstanding()));
                });
        reportContent.append("\\n");
    }

    private void generateHealthcareValue() {
        reportContent.append("HEALTHCARE VALUE ANALYSIS\\n");
        reportContent.append(repeatString("-", 50)).append("\\n");

        // Value indicators
        if (appointments.size() > 10 && serviceUsage.size() > 5) {
            reportContent.append("🟢 High healthcare engagement\\n");
        } else if (appointments.size() > 5) {
            reportContent.append("🟡 Regular healthcare usage\\n");
        } else {
            reportContent.append("🔴 Low healthcare utilization\\n");
        }

        // Cost efficiency analysis
        double costPerAppointment = appointments.size() > 0 ? totalBilled / appointments.size() : 0;
        if (costPerAppointment > 500) {
            reportContent.append("Higher cost utilization pattern\\n");
        } else if (costPerAppointment > 200) {
            reportContent.append("Moderate cost utilization pattern\\n");
        } else {
            reportContent.append("Lower cost utilization pattern\\n");
        }
    }
}

4.3 Multi-Domain Data Correlation

/**
 * Doctor Revenue Performance Visitor demonstrates complex multi-domain analysis
 * Correlates appointment data with billing information for performance metrics
 */
public class DoctorRevenuePerformanceVisitor implements ReportVisitor {
    @Override
    public void visit(Appointment appointment) {
        String doctorId = appointment.getDoctorId();
        DoctorPerformance performance = doctorPerformance.getOrDefault(doctorId,
                new DoctorPerformance(doctorId));
        performance.addAppointment(appointment);
        doctorPerformance.put(doctorId, performance);

        totalAppointments++;

        // Create mapping for later bill correlation
        appointmentToBillMapping.put(appointment.getPatientId() + "_" +
                appointment.getAppointmentDateTime().toLocalDate(), doctorId);
    }

    @Override
    public void visit(MedicalBill bill) {
        totalBills++;
        totalSystemRevenue += bill.getAmount();
        totalSystemCollected += bill.getTotalCollected();

        // Find associated doctor through appointment correlation
        String doctorId = findDoctorForBill(bill.getPatientId());

        if (doctorId != null) {
            DoctorPerformance performance = doctorPerformance.get(doctorId);
            if (performance != null) {
                performance.addRevenueBill(bill);
            }
        } else {
            // Handle unassigned bills
            DoctorPerformance unassigned = doctorPerformance.getOrDefault("UNASSIGNED",
                    new DoctorPerformance("UNASSIGNED"));
            unassigned.addRevenueBill(bill);
            doctorPerformance.put("UNASSIGNED", unassigned);
        }
    }

    private String findDoctorForBill(String patientId) {
        // Logic to correlate bills with appointments based on patient and timing
        return appointmentToBillMapping.entrySet().stream()
                .filter(entry -> entry.getKey().startsWith(patientId))
                .map(Map.Entry::getValue)
                .findFirst()
                .orElse(null);
    }

    // Enhanced DoctorPerformance class with comprehensive metrics
    private static class DoctorPerformance {
        private final String doctorId;
        private final List<Appointment> appointments = new ArrayList<>();
        private final List<MedicalBill> bills = new ArrayList<>();
        private final Map<String, Integer> appointmentStatusBreakdown = new HashMap<>();

        private double totalBilled = 0;
        private double totalPatientPaid = 0;
        private double totalInsurancePaid = 0;
        private double totalCollected = 0;
        private double totalOutstanding = 0;

        public void addAppointment(Appointment appointment) {
            appointments.add(appointment);
            String status = appointment.getStatus();
            appointmentStatusBreakdown.put(status,
                    appointmentStatusBreakdown.getOrDefault(status, 0) + 1);
        }

        public void addRevenueBill(MedicalBill bill) {
            bills.add(bill);
            totalBilled += bill.getAmount();
            totalPatientPaid += bill.getAmountPaid();
            totalInsurancePaid += bill.getInsurancePaidAmount();
            totalCollected = totalPatientPaid + totalInsurancePaid;
            totalOutstanding += bill.getRemainingBalance();
        }

        // Performance calculation methods
        public double getRevenuePerAppointment() {
            return appointments.size() > 0 ? totalBilled / appointments.size() : 0;
        }

        public double getCollectionRate() {
            return totalBilled > 0 ? (totalCollected / totalBilled) * 100 : 0;
        }
    }
}

5. Report Generation Workflows

5.1 Patient-Specific Report Generation

/**
 * Complete workflow for generating patient-specific reports
 */
public void generatePatientReport(String reportType, String patientId) {
    // Step 1: Retrieve patient data
    PatientRecord patient = patientDAO.getPatientById(patientId);
    if (patient == null) {
        throw new IllegalArgumentException("Patient not found: " + patientId);
    }

    // Step 2: Create appropriate visitor
    ReportVisitor visitor = createVisitor(reportType);

    // Step 3: Process patient data
    patient.accept(visitor);

    // Step 4: Process related appointments
    List<Appointment> appointments = schedulingDAO.getAppointmentsByPatientId(patientId);
    appointments.forEach(appointment -> appointment.accept(visitor));

    // Step 5: Process related bills
    List<MedicalBill> bills = billingDAO.getBillsByPatientId(patientId);
    bills.forEach(bill -> bill.accept(visitor));

    // Step 6: Generate final report
    String report = visitor.getReport();

    // Step 7: Display or save report
    displayReport(report, reportType);
}

private ReportVisitor createVisitor(String reportType) {
    switch (reportType) {
        case "PATIENT_SUMMARY":
            return new PatientSummaryReportVisitor();
        case "FINANCIAL":
            return new FinancialReportVisitor();
        case "SERVICE_UTILIZATION":
            return new PatientServiceUtilizationVisitor();
        case "PAYMENT_HISTORY":
            return new PatientPaymentHistoryVisitor();
        default:
            throw new IllegalArgumentException("Unknown report type: " + reportType);
    }
}

5.2 System-Wide Report Generation

/**
 * Workflow for generating comprehensive system reports
 */
public void generateSystemWideReport(String reportType, LocalDate startDate, LocalDate endDate) {
    ReportVisitor visitor = createSystemVisitor(reportType);

    // Process all patients
    List<PatientRecord> patients = patientDAO.getAllPatients();
    patients.forEach(patient -> patient.accept(visitor));

    // Process appointments within date range
    List<Appointment> appointments = schedulingDAO.getAppointmentsByDateRange(startDate, endDate);
    appointments.forEach(appointment -> appointment.accept(visitor));

    // Process bills within date range
    List<MedicalBill> bills = billingDAO.getBillsByDateRange(startDate, endDate);
    bills.forEach(bill -> bill.accept(visitor));

    // Generate comprehensive report
    String report = visitor.getReport();
    displayReport(report, reportType);
}

private ReportVisitor createSystemVisitor(String reportType) {
    switch (reportType) {
        case "COMPREHENSIVE_FINANCIAL":
            return new ComprehensiveFinancialSummaryVisitor();
        case "DOCTOR_PERFORMANCE":
            return new DoctorRevenuePerformanceVisitor();
        case "SYSTEM_UTILIZATION":
            return new SystemUtilizationReportVisitor();
        default:
            throw new IllegalArgumentException("Unknown system report type: " + reportType);
    }
}

5.3 Conditional Report Processing

/**
 * Advanced report generation with conditional processing
 */
public class ConditionalReportVisitor implements ReportVisitor {
    private final Predicate<PatientRecord> patientFilter;
    private final Predicate<Appointment> appointmentFilter;
    private final Predicate<MedicalBill> billFilter;

    public ConditionalReportVisitor(Predicate<PatientRecord> patientFilter,
                                   Predicate<Appointment> appointmentFilter,
                                   Predicate<MedicalBill> billFilter) {
        this.patientFilter = patientFilter;
        this.appointmentFilter = appointmentFilter;
        this.billFilter = billFilter;
    }

    @Override
    public void visit(PatientRecord patient) {
        if (patientFilter.test(patient)) {
            // Process patient data
            processPatientData(patient);
        }
    }

    @Override
    public void visit(Appointment appointment) {
        if (appointmentFilter.test(appointment)) {
            // Process appointment data
            processAppointmentData(appointment);
        }
    }

    @Override
    public void visit(MedicalBill bill) {
        if (billFilter.test(bill)) {
            // Process bill data
            processBillData(bill);
        }
    }

    // Usage example:
    public static ConditionalReportVisitor createHighValuePatientReport() {
        return new ConditionalReportVisitor(
            patient -> hasHighValueBilling(patient),
            appointment -> appointment.getStatus().equals("Completed"),
            bill -> bill.getAmount() > 1000.0
        );
    }
}

6. Usage Scenarios

6.1 Scenario 1: Comprehensive Patient Summary

// Generate complete patient summary for P001
String patientId = "P001";
PatientRecord patient = patientDAO.getPatientById(patientId);

// Create visitor for comprehensive summary
PatientSummaryReportVisitor visitor = new PatientSummaryReportVisitor();

// Process patient information
patient.accept(visitor);

// Process all patient appointments
List<Appointment> appointments = schedulingDAO.getAppointmentsByPatientId(patientId);
appointments.forEach(appointment -> appointment.accept(visitor));

// Process all patient bills
List<MedicalBill> bills = billingDAO.getBillsByPatientId(patientId);
bills.forEach(bill -> bill.accept(visitor));

// Generate final report
String report = visitor.getReport();

// Expected report sections:
// - Patient Information (demographics, insurance)
// - Healthcare Summary (appointments, engagement level)
// - Financial Summary (billing, payments, outstanding)
// - Service Utilization (most used services)
// - Doctor Relationships (frequency of visits)
// - Health Indicators (compliance, service diversity)
// - Action Items (recommendations)

6.2 Scenario 2: Financial Analysis Report

// Generate detailed financial report for patient
FinancialReportVisitor financialVisitor = new FinancialReportVisitor();

// Process the same data through financial lens
patient.accept(financialVisitor);
appointments.forEach(appointment -> appointment.accept(financialVisitor));
bills.forEach(bill -> bill.accept(financialVisitor));

String financialReport = financialVisitor.getReport();

// Expected financial analysis:
// - Total amounts (billed, collected, outstanding)
// - Payment breakdown (patient vs insurance)
// - Service revenue analysis
// - Payment status categorization
// - Collection rate calculations
// - Financial recommendations

6.3 Scenario 3: Multi-Patient Service Utilization

// Analyze service utilization across multiple patients
PatientServiceUtilizationVisitor utilizationVisitor = new PatientServiceUtilizationVisitor();

List<String> patientIds = Arrays.asList("P001", "P002", "P003");

for (String pid : patientIds) {
    PatientRecord pt = patientDAO.getPatientById(pid);
    pt.accept(utilizationVisitor);

    // Process appointments and bills for each patient
    schedulingDAO.getAppointmentsByPatientId(pid)
            .forEach(apt -> apt.accept(utilizationVisitor));
    billingDAO.getBillsByPatientId(pid)
            .forEach(bill -> bill.accept(utilizationVisitor));
}

String utilizationReport = utilizationVisitor.getReport();

// Expected utilization analysis:
// - Service usage patterns per patient
// - Doctor utilization metrics
// - Cost per service analysis
// - Healthcare value indicators
// - Utilization recommendations

6.4 Scenario 4: Doctor Performance Analysis

// Generate doctor performance report across all patients
DoctorRevenuePerformanceVisitor performanceVisitor = new DoctorRevenuePerformanceVisitor();

// Process all patients, appointments, and bills
List<PatientRecord> allPatients = patientDAO.getAllPatients();
allPatients.forEach(patient -> patient.accept(performanceVisitor));

List<Appointment> allAppointments = schedulingDAO.getAllAppointments();
allAppointments.forEach(appointment -> appointment.accept(performanceVisitor));

List<MedicalBill> allBills = billingDAO.getAllBills();
allBills.forEach(bill -> bill.accept(performanceVisitor));

String performanceReport = performanceVisitor.getReport();

// Expected performance metrics:
// - Revenue per doctor
// - Appointment volume by doctor
// - Collection rates by doctor
// - Patient load analysis
// - Performance rankings
// - Revenue efficiency metrics

7. Benefits & Trade-offs

7.1 Visitor Pattern Benefits

Separation of Concerns

Report generation logic completely separated from domain objects
Domain objects remain focused on core business functionality
Different report types can be developed independently
Easy to modify report algorithms without affecting domain model

Extensibility

New report types can be added without modifying existing domain classes
Complex analytical reports can be implemented as new visitors
Regulatory reporting requirements easily accommodated
Custom reports for different stakeholders simple to implement

Code Reusability

Same domain objects can be processed by multiple report visitors
Common report utilities can be shared across visitor implementations
Data aggregation patterns can be reused in different report contexts
Report generation workflows are consistent and reusable

Type Safety

Compile-time checking ensures all visitable types are handled
Method overloading provides type-specific processing logic
No need for runtime type checking or casting
Clear contracts between visitors and domain objects

7.2 Healthcare Domain Specific Benefits

Regulatory Compliance

Easy to implement new reporting requirements for changing regulations
Audit trail capabilities built into report generation process
Standardized report formats for regulatory submissions
Historical reporting capabilities for compliance verification

Multi-Stakeholder Support

Different report views for clinical staff, administrators, and patients
Financial reports for billing departments and insurance companies
Clinical reports for care coordination and quality improvement
Administrative reports for operational management

Data Consistency

Reports always based on current domain object state
No data duplication between report storage and operational data
Real-time report generation ensures data accuracy
Consistent calculations across different report types

Performance Optimization

Reports generated on-demand without pre-computation overhead
Efficient data traversal patterns for large datasets
Memory-efficient processing through visitor callbacks
Scalable approach for enterprise healthcare systems

7.3 Trade-offs and Considerations

Complexity Management

Large number of visitor classes for comprehensive reporting
Complex interactions between different visitor implementations
Need for careful design to avoid visitor explosion
Testing complexity increases with number of visitors

Performance Considerations

Method dispatch overhead through visitor interface
Memory usage can grow with complex report data structures
Large datasets may require streaming or pagination approaches
Report generation time scales with data volume

Maintenance Overhead

Adding new domain object types requires updating all visitors
Interface changes affect all visitor implementations
Version compatibility issues between visitors and domain objects
Documentation critical for understanding visitor relationships

Learning Curve

Visitor pattern can be difficult for developers to understand initially
Complex report logic may be harder to debug across multiple methods
Requires good understanding of double dispatch mechanism
Testing strategies need to account for visitor pattern structure

8. Testing & Validation

8.1 Unit Testing Individual Visitors

@Test
public void testPatientSummaryReportVisitor() {
    // Arrange
    PatientSummaryReportVisitor visitor = new PatientSummaryReportVisitor();

    PatientRecord patient = new PatientRecord("P001", "John Doe");
    patient.setMedicalHistory("Diabetes, Hypertension");

    Appointment appointment = new Appointment("P001", "D001",
            LocalDateTime.now(), "Regular checkup");
    appointment.setStatus("Completed");

    MedicalBill bill = new MedicalBill("P001", "Consultation", 150.00);
    bill.setAmountPaid(30.00);
    bill.setInsurancePaidAmount(120.00);

    // Act
    patient.accept(visitor);
    appointment.accept(visitor);
    bill.accept(visitor);

    String report = visitor.getReport();

    // Assert
    assertNotNull(report);
    assertTrue(report.contains("John Doe"));
    assertTrue(report.contains("P001"));
    assertTrue(report.contains("Total Appointments: 1"));
    assertTrue(report.contains("Total Billed: $150.00"));
    assertTrue(report.contains("Total Collected: $150.00"));
    assertTrue(report.contains("Outstanding Balance: $0.00"));
}

@Test
public void testFinancialReportVisitor() {
    // Arrange
    FinancialReportVisitor visitor = new FinancialReportVisitor();

    PatientRecord patient = new PatientRecord("P002", "Jane Smith");

    MedicalBill bill1 = new MedicalBill("P002", "Surgery", 5000.00);
    bill1.setAmountPaid(1000.00);
    bill1.setInsurancePaidAmount(3000.00);

    MedicalBill bill2 = new MedicalBill("P002", "Follow-up", 200.00);
    bill2.setAmountPaid(50.00);
    bill2.setInsurancePaidAmount(150.00);

    // Act
    patient.accept(visitor);
    bill1.accept(visitor);
    bill2.accept(visitor);

    String report = visitor.getReport();

    // Assert
    assertTrue(report.contains("Total Amount Billed: $5,200.00"));
    assertTrue(report.contains("Patient Payments: $1,050.00"));
    assertTrue(report.contains("Insurance Payments: $3,150.00"));
    assertTrue(report.contains("Total Collected: $4,200.00"));
}

@Test
public void testServiceUtilizationVisitor() {
    // Arrange
    PatientServiceUtilizationVisitor visitor = new PatientServiceUtilizationVisitor();

    PatientRecord patient = new PatientRecord("P003", "Bob Wilson");

    // Multiple appointments with same doctor
    Appointment apt1 = new Appointment("P003", "D001", LocalDateTime.now(), "Checkup");
    Appointment apt2 = new Appointment("P003", "D001", LocalDateTime.now().plusWeeks(2), "Follow-up");

    // Multiple services
    MedicalBill bill1 = new MedicalBill("P003", "Consultation", 150.00);
    MedicalBill bill2 = new MedicalBill("P003", "Consultation", 150.00);
    MedicalBill bill3 = new MedicalBill("P003", "Lab Test", 75.00);

    // Act
    patient.accept(visitor);
    apt1.accept(visitor);
    apt2.accept(visitor);
    bill1.accept(visitor);
    bill2.accept(visitor);
    bill3.accept(visitor);

    String report = visitor.getReport();

    // Assert
    assertTrue(report.contains("Total Services: 3"));
    assertTrue(report.contains("Consultation")); // Most used service
    assertTrue(report.contains("D001")); // Doctor utilization
    assertTrue(report.contains("Total Billed: $375.00"));
}

8.2 Integration Testing with Multiple Visitors

@Test
public void testMultipleVisitorsOnSameData() {
    // Arrange - Common test data
    PatientRecord patient = createTestPatient();
    List<Appointment> appointments = createTestAppointments();
    List<MedicalBill> bills = createTestBills();

    // Create different visitors
    PatientSummaryReportVisitor summaryVisitor = new PatientSummaryReportVisitor();
    FinancialReportVisitor financialVisitor = new FinancialReportVisitor();
    PatientServiceUtilizationVisitor utilizationVisitor = new PatientServiceUtilizationVisitor();

    // Act - Process same data with different visitors
    List<ReportVisitor> visitors = Arrays.asList(
            summaryVisitor, financialVisitor, utilizationVisitor);

    visitors.forEach(visitor -> {
        patient.accept(visitor);
        appointments.forEach(apt -> apt.accept(visitor));
        bills.forEach(bill -> bill.accept(visitor));
    });

    // Assert - Different reports generated from same data
    String summaryReport = summaryVisitor.getReport();
    String financialReport = financialVisitor.getReport();
    String utilizationReport = utilizationVisitor.getReport();

    assertNotEquals(summaryReport, financialReport);
    assertNotEquals(financialReport, utilizationReport);

    // Verify each report contains appropriate content
    assertTrue(summaryReport.contains("COMPREHENSIVE PATIENT SUMMARY"));
    assertTrue(financialReport.contains("FINANCIAL SUMMARY"));
    assertTrue(utilizationReport.contains("SERVICE UTILIZATION"));
}

8.3 Performance Testing

@Test
public void testLargeDatasetReportGeneration() {
    // Arrange - Large dataset
    List<PatientRecord> patients = createTestPatients(1000);
    List<Appointment> appointments = createTestAppointments(5000);
    List<MedicalBill> bills = createTestBills(3000);

    PatientSummaryReportVisitor visitor = new PatientSummaryReportVisitor();

    // Act - Measure performance
    long startTime = System.currentTimeMillis();

    patients.forEach(patient -> patient.accept(visitor));
    appointments.forEach(appointment -> appointment.accept(visitor));
    bills.forEach(bill -> bill.accept(visitor));

    String report = visitor.getReport();

    long endTime = System.currentTimeMillis();
    long duration = endTime - startTime;

    // Assert - Performance within acceptable limits
    assertTrue("Report generation should complete within 5 seconds",
               duration < 5000);
    assertNotNull(report);
    assertTrue("Report should contain substantial content",
               report.length() > 1000);
}

@Test
public void testMemoryUsageWithLargeReports() {
    // Test memory efficiency of visitor pattern
    Runtime runtime = Runtime.getRuntime();
    long initialMemory = runtime.totalMemory() - runtime.freeMemory();

    // Generate large report
    generateLargeReport();

    long finalMemory = runtime.totalMemory() - runtime.freeMemory();
    long memoryUsed = finalMemory - initialMemory;

    // Assert memory usage is reasonable
    assertTrue("Memory usage should be under 100MB",
               memoryUsed < 100 * 1024 * 1024);
}

8.4 Error Handling Testing

@Test
public void testVisitorWithNullData() {
    PatientSummaryReportVisitor visitor = new PatientSummaryReportVisitor();

    // Test null patient
    assertThrows(NullPointerException.class, () -> {
        PatientRecord nullPatient = null;
        nullPatient.accept(visitor);
    });

    // Test patient with null fields
    PatientRecord incompletePatient = new PatientRecord(null, "Test Name");
    assertDoesNotThrow(() -> {
        incompletePatient.accept(visitor);
        String report = visitor.getReport();
        assertNotNull(report);
    });
}

@Test
public void testVisitorWithInvalidData() {
    FinancialReportVisitor visitor = new FinancialReportVisitor();

    // Test bill with negative amounts
    MedicalBill invalidBill = new MedicalBill("P001", "Test Service", -100.00);

    assertDoesNotThrow(() -> {
        invalidBill.accept(visitor);
        String report = visitor.getReport();
        // Verify report handles invalid data gracefully
        assertNotNull(report);
    });
}

9. Conclusion

The Visitor pattern implementation for medical reports generation demonstrates a sophisticated approach to handling diverse reporting requirements in healthcare systems. The pattern successfully addresses the complex challenges of multi-domain data aggregation while maintaining clean separation between report generation logic and core business objects.

Key Achievements

Flexible Report Framework: Successfully implements a comprehensive reporting system that can generate diverse report types from the same underlying data
Domain Separation: Clean separation between business logic and reporting concerns, allowing independent evolution of both
Extensible Architecture: Easy addition of new report types without modifying existing domain objects or other reports
Complex Data Analysis: Sophisticated data aggregation and correlation across multiple domain objects (patients, appointments, bills)
Performance Scalability: Efficient processing of large datasets through visitor callbacks and streaming approaches

Real-World Healthcare Impact

The Visitor pattern proves particularly valuable in healthcare reporting contexts where:

Regulatory Compliance requires diverse reporting formats for different regulatory bodies and timeframes
Multi-Stakeholder Needs demand different views of the same data for clinical staff, administrators, patients, and insurance companies
Clinical Decision Support benefits from comprehensive patient summaries and utilization analysis
Financial Management requires detailed billing analysis and revenue performance tracking
Quality Improvement needs service utilization patterns and patient engagement metrics

Pattern Benefits Realized

The implementation successfully demonstrates how the Visitor pattern can:

Enable complex analytical processing without cluttering domain objects with reporting logic
Support real-time report generation from current operational data without data duplication
Facilitate consistent data interpretation across different report types and stakeholders
Provide type-safe report processing with compile-time verification of visitor completeness
Maintain high performance even with large datasets through efficient visitor traversal patterns

Technical Excellence

The visitor implementation showcases several advanced techniques:

Double Dispatch mechanism for type-specific processing
Data Correlation across multiple domain boundaries for comprehensive analysis
Conditional Processing for filtered and targeted report generation
Memory Efficiency through streaming visitor patterns for large datasets
Error Resilience with graceful handling of incomplete or invalid data

The medical reports generation system provides a robust foundation for healthcare analytics while maintaining the flexibility needed for evolving reporting requirements in dynamic healthcare environments.

Document Status: Part E Complete

Next: Part F - Security Considerations - Decorator, DAO

Staff Roles & Permissions Security Considerations
